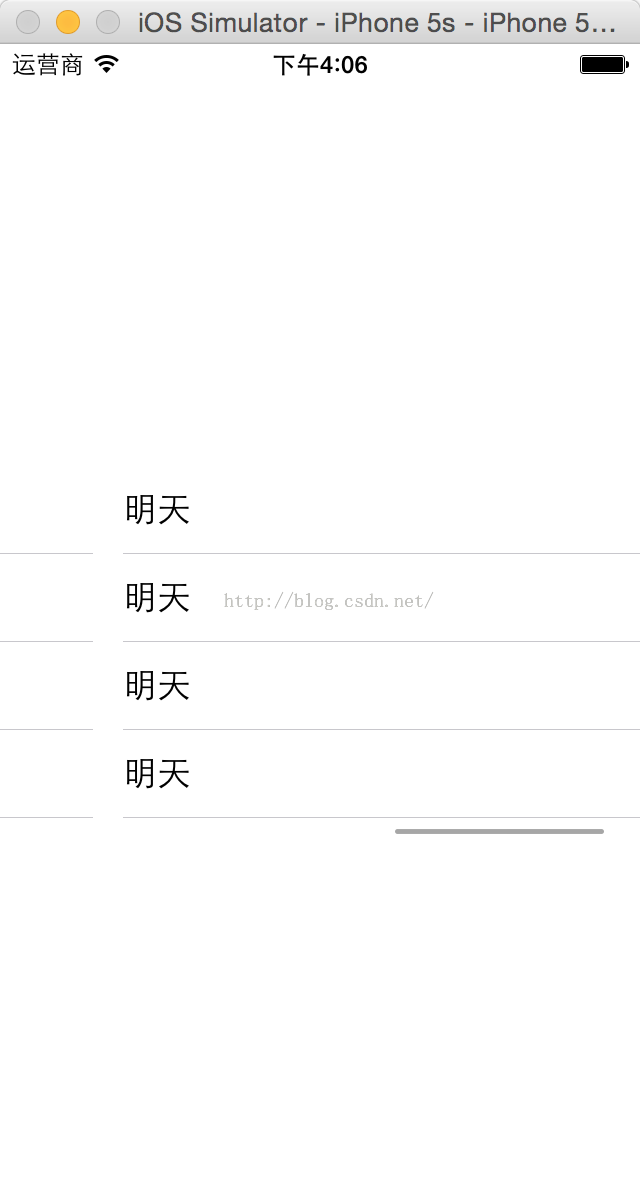

在Android中我們常常使用ListView來表示列表,來顯示類似的呈現列表樣式的結果。來到iOS中,這種控件稱之為TableView。這裡我們將會通過使用ScrollView和TableView結合的方式來實現可以側滑顯示的列表,這將會大大提高用戶體驗。先看一下實現效果:
。
。
。
具體實現步驟如下:

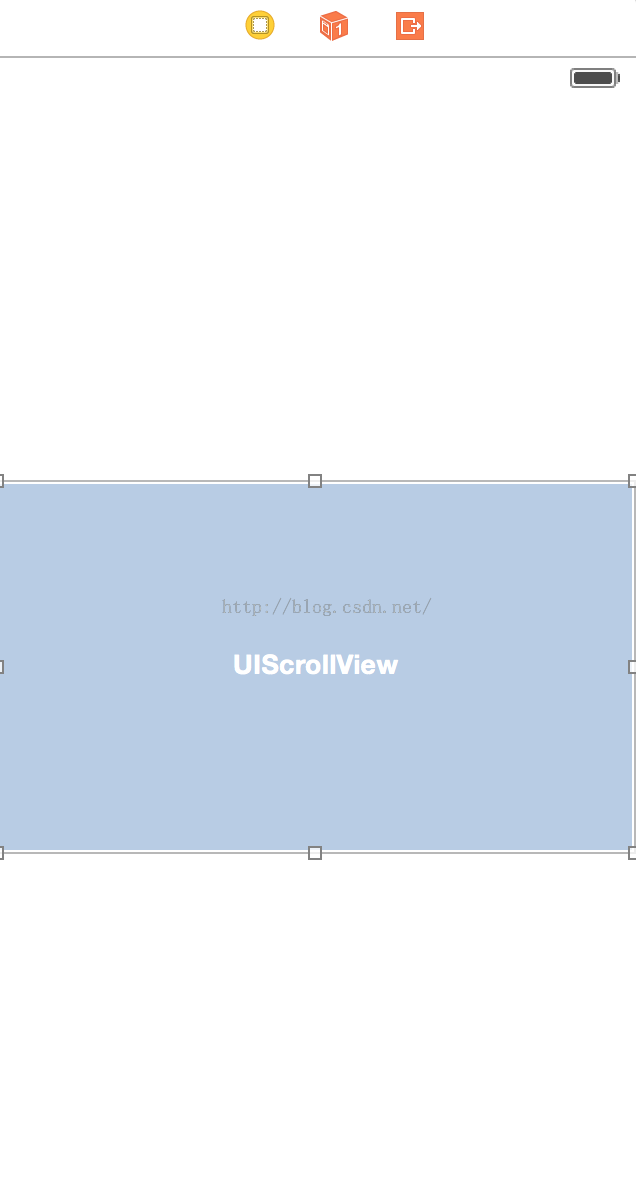

(1)創建一個iOS項目,Language選擇Swift,然後在Main.storyboard中拖入一個ScrollView,即滾動控件,界面設計如圖:
。
(2)然後拖動控件綁定到代碼中:
@IBOutlet weak var dynamicScrollView: UIScrollView!
var tableView11:UITableView = UITableView()
var tableView22:UITableView = UITableView()
var tableView33:UITableView = UITableView()
var cell1 = UITableViewCell()
var cell2 = UITableViewCell()
var cell3 = UITableViewCell()
override func viewDidLoad() {
super.viewDidLoad()
tableView11.delegate = self
tableView11.dataSource = self
tableView22.delegate = self
tableView22.dataSource = self
tableView33.delegate = self
tableView33.dataSource = self
dynamicScroll()
initCustomTableView()
}
func dynamicScroll(){ //動態信息的滾動;
let tableW:CGFloat = self.dynamicScrollView.frame.size.width;
let tableH:CGFloat = self.dynamicScrollView.frame.size.height;
var tableY:CGFloat = 0;
var totalCount:NSInteger = 3;//只有三列;
var tableView1:UITableView = UITableView();
var tableView2:UITableView = UITableView();
var tableView3:UITableView = UITableView();
tableView11.frame = CGRectMake(CGFloat(0) * tableW, tableY, tableW, tableH);
tableView22.frame = CGRectMake(CGFloat(1) * tableW, tableY, tableW, tableH);
tableView33.frame = CGRectMake(CGFloat(2) * tableW, tableY, tableW, tableH);
dynamicScrollView.addSubview(tableView11);
dynamicScrollView.addSubview(tableView22);
dynamicScrollView.addSubview(tableView33);
let contentW:CGFloat = tableW * CGFloat(totalCount);//這個表示整個ScrollView的長度;
dynamicScrollView.contentSize = CGSizeMake(contentW, 0);
dynamicScrollView.pagingEnabled = true;
dynamicScrollView.delegate = self;
}
func initCustomTableView(){ //初始化動態信息中的TableView
tableView11.registerClass(UITableViewCell.self, forCellReuseIdentifier:cell1)
tableView22.registerClass(UITableViewCell.self, forCellReuseIdentifier:cell2)
tableView33.registerClass(UITableViewCell.self, forCellReuseIdentifier:cell3)
}
func tableView(tableView: UITableView, numberOfRowsInSection section: Int) -> Int{
return 5 //返回TableView的Cell數量,可以動態設置;
}
func tableView(tableView: UITableView, cellForRowAtIndexPath indexPath: NSIndexPath) -> UITableViewCell{
var cell = UITableViewCell()
switch tableView {
case tableView11:
cell1 = tableView11.dequeueReusableCellWithIdentifier(cell1) as! UITableViewCell
cell1.textLabel!.text = String(format:昨天)
cell = cell1
break
case tableView22:
cell2 = tableView22.dequeueReusableCellWithIdentifier(cell2) as! UITableViewCell
cell2.textLabel!.text = String(format:今天)
cell = cell2
break
case tableView33:
cell3 = tableView33.dequeueReusableCellWithIdentifier(cell3) as! UITableViewCell
cell3.textLabel!.text = String(format:明天)
cell = cell3
break
default:
break
}
return cell
}
在iOS的開發中,TableView和ScrollView是兩個最為常用,使用最為靈活的控件,必須要好好掌握。
