手把手教你實現微信小視頻iOS代碼實現
編輯：IOS開發綜合
前段時間項目要求需要在聊天模塊中加入類似微信的小視頻功能，這邊博客主要是為了總結遇到的問題和解決方法，希望能夠對有同樣需求的朋友有所幫助。

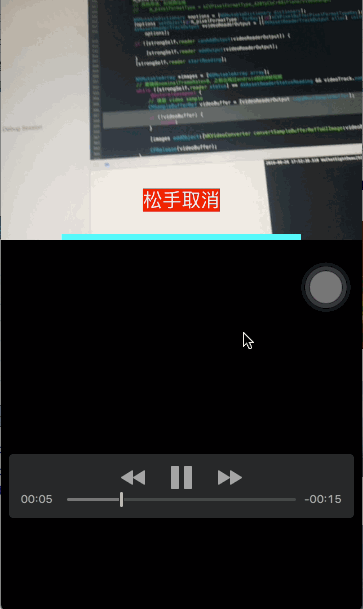

效果預覽：
這裡先羅列遇到的主要問題：
1.視頻剪裁 微信的小視頻只是取了攝像頭獲取的一部分畫面
2.滾動預覽的卡頓問題 AVPlayer播放視頻在滾動中會出現很卡的問題
接下來讓我們一步步來實現。
Part 1 實現視頻錄制
1.錄制類WKMovieRecorder實現
創建一個錄制類WKMovieRecorder，負責視頻錄制。
@interface WKMovieRecorder : NSObject + (WKMovieRecorder*) sharedRecorder; - (instancetype)initWithMaxDuration:(NSTimeInterval)duration; @end
定義回調block
/** * 錄制結束 * * @param info 回調信息 * @param isCancle YES:取消 NO:正常結束 */ typedef void(^FinishRecordingBlock)(NSDictionary *info, WKRecorderFinishedReason finishReason); /** * 焦點改變 */ typedef void(^FocusAreaDidChanged)(); /** * 權限驗證 * * @param success 是否成功 */ typedef void(^AuthorizationResult)(BOOL success); @interface WKMovieRecorder : NSObject //回調 @property (nonatomic, copy) FinishRecordingBlock finishBlock;//錄制結束回調 @property (nonatomic, copy) FocusAreaDidChanged focusAreaDidChangedBlock; @property (nonatomic, copy) AuthorizationResult authorizationResultBlock; @end
定義一個cropSize用於視頻裁剪
@property (nonatomic, assign) CGSize cropSize;
接下來就是capture的實現了，這裡代碼有點長，懶得看的可以直接看後面的視頻剪裁部分
錄制配置：
@interface WKMovieRecorder ()
<
AVCaptureVideoDataOutputSampleBufferDelegate,
AVCaptureAudioDataOutputSampleBufferDelegate,
WKMovieWriterDelegate
>
{
AVCaptureSession* _session;
AVCaptureVideoPreviewLayer* _preview;
WKMovieWriter* _writer;
//暫停錄制
BOOL _isCapturing;
BOOL _isPaused;
BOOL _discont;
int _currentFile;
CMTime _timeOffset;
CMTime _lastVideo;
CMTime _lastAudio;
NSTimeInterval _maxDuration;
}
// Session management.
@property (nonatomic, strong) dispatch_queue_t sessionQueue;
@property (nonatomic, strong) dispatch_queue_t videoDataOutputQueue;
@property (nonatomic, strong) AVCaptureSession *session;
@property (nonatomic, strong) AVCaptureDevice *captureDevice;
@property (nonatomic, strong) AVCaptureDeviceInput *videoDeviceInput;
@property (nonatomic, strong) AVCaptureStillImageOutput *stillImageOutput;
@property (nonatomic, strong) AVCaptureConnection *videoConnection;
@property (nonatomic, strong) AVCaptureConnection *audioConnection;
@property (nonatomic, strong) NSDictionary *videoCompressionSettings;
@property (nonatomic, strong) NSDictionary *audioCompressionSettings;
@property (nonatomic, strong) AVAssetWriterInputPixelBufferAdaptor *adaptor;
@property (nonatomic, strong) AVCaptureVideoDataOutput *videoDataOutput;
//Utilities
@property (nonatomic, strong) NSMutableArray *frames;//存儲錄制幀
@property (nonatomic, assign) CaptureAVSetupResult result;
@property (atomic, readwrite) BOOL isCapturing;
@property (atomic, readwrite) BOOL isPaused;
@property (nonatomic, strong) NSTimer *durationTimer;
@property (nonatomic, assign) WKRecorderFinishedReason finishReason;
@end
實例化方法：
+ (WKMovieRecorder *)sharedRecorder
{
static WKMovieRecorder *recorder;
static dispatch_once_t onceToken;
dispatch_once(&onceToken, ^{
recorder = [[WKMovieRecorder alloc] initWithMaxDuration:CGFLOAT_MAX];
});
return recorder;
}
- (instancetype)initWithMaxDuration:(NSTimeInterval)duration
{
if(self = [self init]){
_maxDuration = duration;
_duration = 0.f;
}
return self;
}
- (instancetype)init
{
self = [super init];
if (self) {
_maxDuration = CGFLOAT_MAX;
_duration = 0.f;
_sessionQueue = dispatch_queue_create("wukong.movieRecorder.queue", DISPATCH_QUEUE_SERIAL );
_videoDataOutputQueue = dispatch_queue_create( "wukong.movieRecorder.video", DISPATCH_QUEUE_SERIAL );
dispatch_set_target_queue( _videoDataOutputQueue, dispatch_get_global_queue( DISPATCH_QUEUE_PRIORITY_HIGH, 0 ) );
}
return self;
}
2.初始化設置
初始化設置分別為session創建、權限檢查以及session配置
1）.session創建
self.session = [[AVCaptureSession alloc] init];
self.result = CaptureAVSetupResultSuccess;
2）.權限檢查
//權限檢查
switch ([AVCaptureDevice authorizationStatusForMediaType:AVMediaTypeVideo]) {
case AVAuthorizationStatusNotDetermined: {
[AVCaptureDevice requestAccessForMediaType:AVMediaTypeVideo completionHandler:^(BOOL granted) {
if (granted) {
self.result = CaptureAVSetupResultSuccess;
}
}];
break;
}
case AVAuthorizationStatusAuthorized: {
break;
}
default:{
self.result = CaptureAVSetupResultCameraNotAuthorized;
}
}
if ( self.result != CaptureAVSetupResultSuccess) {
if (self.authorizationResultBlock) {
self.authorizationResultBlock(NO);
}
return;
}
3）.session配置
session配置是需要注意的是AVCaptureSession的配置不能在主線程, 需要自行創建串行線程。
3.1.1 獲取輸入設備與輸入流
AVCaptureDevice *captureDevice = [[self class] deviceWithMediaType:AVMediaTypeVideo preferringPosition:AVCaptureDevicePositionBack];
_captureDevice = captureDevice;
NSError *error = nil;
_videoDeviceInput = [[AVCaptureDeviceInput alloc] initWithDevice:captureDevice error:&error];
if (!_videoDeviceInput) {
NSLog(@"未找到設備");
}
3.1.2 錄制幀數設置
幀數設置的主要目的是適配iPhone4，畢竟是應該淘汰的機器了
int frameRate;
if ( [NSProcessInfo processInfo].processorCount == 1 )
{
if ([self.session canSetSessionPreset:AVCaptureSessionPresetLow]) {
[self.session setSessionPreset:AVCaptureSessionPresetLow];
}
frameRate = 10;
}else{
if ([self.session canSetSessionPreset:AVCaptureSessionPreset640x480]) {
[self.session setSessionPreset:AVCaptureSessionPreset640x480];
}
frameRate = 30;
}
CMTime frameDuration = CMTimeMake( 1, frameRate );
if ( [_captureDevice lockForConfiguration:&error] ) {
_captureDevice.activeVideoMaxFrameDuration = frameDuration;
_captureDevice.activeVideoMinFrameDuration = frameDuration;
[_captureDevice unlockForConfiguration];
}
else {
NSLog( @"videoDevice lockForConfiguration returned error %@", error );
}
3.1.3 視頻輸出設置
視頻輸出設置需要注意的問題是：要設置videoConnection的方向，這樣才能保證設備旋轉時的顯示正常。
//Video
if ([self.session canAddInput:_videoDeviceInput]) {
[self.session addInput:_videoDeviceInput];
self.videoDeviceInput = _videoDeviceInput;
[self.session removeOutput:_videoDataOutput];
AVCaptureVideoDataOutput *videoOutput = [[AVCaptureVideoDataOutput alloc] init];
_videoDataOutput = videoOutput;
videoOutput.videoSettings = @{ (id)kCVPixelBufferPixelFormatTypeKey : @(kCVPixelFormatType_32BGRA) };
[videoOutput setSampleBufferDelegate:self queue:_videoDataOutputQueue];
videoOutput.alwaysDiscardsLateVideoFrames = NO;
if ( [_session canAddOutput:videoOutput] ) {
[_session addOutput:videoOutput];
[_captureDevice addObserver:self forKeyPath:@"adjustingFocus" options:NSKeyValueObservingOptionNew context:FocusAreaChangedContext];
_videoConnection = [videoOutput connectionWithMediaType:AVMediaTypeVideo];
if(_videoConnection.isVideoStabilizationSupported){
_videoConnection.preferredVideoStabilizationMode = AVCaptureVideoStabilizationModeAuto;
}
UIInterfaceOrientation statusBarOrientation = [UIApplication sharedApplication].statusBarOrientation;
AVCaptureVideoOrientation initialVideoOrientation = AVCaptureVideoOrientationPortrait;
if ( statusBarOrientation != UIInterfaceOrientationUnknown ) {
initialVideoOrientation = (AVCaptureVideoOrientation)statusBarOrientation;
}
_videoConnection.videoOrientation = initialVideoOrientation;
}
}
else{
NSLog(@"無法添加視頻輸入到會話");
}
3.1.4 音頻設置
需要注意的是為了不丟幀，需要把音頻輸出的回調隊列放在串行隊列中
//audio
AVCaptureDevice *audioDevice = [AVCaptureDevice defaultDeviceWithMediaType:AVMediaTypeAudio];
AVCaptureDeviceInput *audioDeviceInput = [AVCaptureDeviceInput deviceInputWithDevice:audioDevice error:&error];
if ( ! audioDeviceInput ) {
NSLog( @"Could not create audio device input: %@", error );
}
if ( [self.session canAddInput:audioDeviceInput] ) {
[self.session addInput:audioDeviceInput];
}
else {
NSLog( @"Could not add audio device input to the session" );
}
AVCaptureAudioDataOutput *audioOut = [[AVCaptureAudioDataOutput alloc] init];
// Put audio on its own queue to ensure that our video processing doesn't cause us to drop audio
dispatch_queue_t audioCaptureQueue = dispatch_queue_create( "wukong.movieRecorder.audio", DISPATCH_QUEUE_SERIAL );
[audioOut setSampleBufferDelegate:self queue:audioCaptureQueue];
if ( [self.session canAddOutput:audioOut] ) {
[self.session addOutput:audioOut];
}
_audioConnection = [audioOut connectionWithMediaType:AVMediaTypeAudio];
還需要注意一個問題就是對於session的配置代碼應該是這樣的
[self.session beginConfiguration];
...配置代碼
[self.session commitConfiguration];
由於篇幅問題，後面的錄制代碼我就挑重點的講了。
3.2 視頻存儲
現在我們需要在AVCaptureVideoDataOutputSampleBufferDelegate與AVCaptureAudioDataOutputSampleBufferDelegate的回調中，將音頻和視頻寫入沙盒。在這個過程中需要注意的，在啟動session後獲取到的第一幀黑色的，需要放棄。
3.2.1 創建WKMovieWriter類來封裝視頻存儲操作
WKMovieWriter的主要作用是利用AVAssetWriter拿到CMSampleBufferRef，剪裁後再寫入到沙盒中。
這是剪裁配置的代碼，AVAssetWriter會根據cropSize來剪裁視頻，這裡需要注意的一個問題是cropSize的width必須是320的整數倍，不然的話剪裁出來的視頻右側會出現一條綠色的線
NSDictionary *videoSettings;
if (_cropSize.height == 0 || _cropSize.width == 0) {
_cropSize = [UIScreen mainScreen].bounds.size;
}
videoSettings = [NSDictionary dictionaryWithObjectsAndKeys:
AVVideoCodecH264, AVVideoCodecKey,
[NSNumber numberWithInt:_cropSize.width], AVVideoWidthKey,
[NSNumber numberWithInt:_cropSize.height], AVVideoHeightKey,
AVVideoScalingModeResizeAspectFill,AVVideoScalingModeKey,
nil];
至此，視頻錄制就完成了。
接下來需要解決的預覽的問題了
Part 2 卡頓問題解決
1.1 gif圖生成
通過查資料發現了這篇blog 介紹說微信團隊解決預覽卡頓的問題使用的是播放圖片gif，但是博客中的示例代碼有問題，通過CoreAnimation來播放圖片導致內存暴漲而crash。但是，還是給了我一些靈感，因為之前項目的啟動頁用到了gif圖片的播放，所以我就想能不能把視頻轉成圖片，然後再轉成gif圖進行播放，這樣不就解決了問題了嗎。於是我開始google功夫不負有心人找到了，圖片數組轉gif圖片的方法。
gif圖轉換代碼
static void makeAnimatedGif(NSArray *images, NSURL *gifURL, NSTimeInterval duration) {
NSTimeInterval perSecond = duration /images.count;
NSDictionary *fileProperties = @{
(__bridge id)kCGImagePropertyGIFDictionary: @{
(__bridge id)kCGImagePropertyGIFLoopCount: @0, // 0 means loop forever
}
};
NSDictionary *frameProperties = @{
(__bridge id)kCGImagePropertyGIFDictionary: @{
(__bridge id)kCGImagePropertyGIFDelayTime: @(perSecond), // a float (not double!) in seconds, rounded to centiseconds in the GIF data
}
};
CGImageDestinationRef destination = CGImageDestinationCreateWithURL((__bridge CFURLRef)gifURL, kUTTypeGIF, images.count, NULL);
CGImageDestinationSetProperties(destination, (__bridge CFDictionaryRef)fileProperties);
for (UIImage *image in images) {
@autoreleasepool {
CGImageDestinationAddImage(destination, image.CGImage, (__bridge CFDictionaryRef)frameProperties);
}
}
if (!CGImageDestinationFinalize(destination)) {
NSLog(@"failed to finalize image destination");
}else{
}
CFRelease(destination);
}
轉換是轉換成功了，但是出現了新的問題，使用ImageIO生成gif圖片時會導致內存暴漲，瞬間漲到100M以上，如果多個gif圖同時生成的話一樣會crash掉，為了解決這個問題需要用一個串行隊列來進行gif圖的生成
1.2 視頻轉換為UIImages
主要是通過AVAssetReader、AVAssetTrack、AVAssetReaderTrackOutput 來進行轉換
//轉成UIImage
- (void)convertVideoUIImagesWithURL:(NSURL *)url finishBlock:(void (^)(id images, NSTimeInterval duration))finishBlock
{
AVAsset *asset = [AVAsset assetWithURL:url];
NSError *error = nil;
self.reader = [[AVAssetReader alloc] initWithAsset:asset error:&error];
NSTimeInterval duration = CMTimeGetSeconds(asset.duration);
__weak typeof(self)weakSelf = self;
dispatch_queue_t backgroundQueue = dispatch_get_global_queue(DISPATCH_QUEUE_PRIORITY_HIGH, 0);
dispatch_async(backgroundQueue, ^{
__strong typeof(weakSelf) strongSelf = weakSelf;
NSLog(@"");
if (error) {
NSLog(@"%@", [error localizedDescription]);
}
NSArray *videoTracks = [asset tracksWithMediaType:AVMediaTypeVideo];
AVAssetTrack *videoTrack =[videoTracks firstObject];
if (!videoTrack) {
return ;
}
int m_pixelFormatType;
// 視頻播放時，
m_pixelFormatType = kCVPixelFormatType_32BGRA;
// 其他用途，如視頻壓縮
// m_pixelFormatType = kCVPixelFormatType_420YpCbCr8BiPlanarVideoRange;
NSMutableDictionary *options = [NSMutableDictionary dictionary];
[options setObject:@(m_pixelFormatType) forKey:(id)kCVPixelBufferPixelFormatTypeKey];
AVAssetReaderTrackOutput *videoReaderOutput = [[AVAssetReaderTrackOutput alloc] initWithTrack:videoTrack outputSettings:options];
if ([strongSelf.reader canAddOutput:videoReaderOutput]) {
[strongSelf.reader addOutput:videoReaderOutput];
}
[strongSelf.reader startReading];
NSMutableArray *images = [NSMutableArray array];
// 要確保nominalFrameRate>0，之前出現過android拍的0幀視頻
while ([strongSelf.reader status] == AVAssetReaderStatusReading && videoTrack.nominalFrameRate > 0) {
@autoreleasepool {
// 讀取 video sample
CMSampleBufferRef videoBuffer = [videoReaderOutput copyNextSampleBuffer];
if (!videoBuffer) {
break;
}
[images addObject:[WKVideoConverter convertSampleBufferRefToUIImage:videoBuffer]];
CFRelease(videoBuffer);
}
}
if (finishBlock) {
dispatch_async(dispatch_get_main_queue(), ^{
finishBlock(images, duration);
});
}
});
}
在這裡有一個值得注意的問題，在視頻轉image的過程中，由於轉換時間很短，在短時間內videoBuffer不能夠及時得到釋放，在多個視頻同時轉換時任然會出現內存問題，這個時候就需要用autoreleasepool來實現及時釋放
@autoreleasepool {
// 讀取 video sample
CMSampleBufferRef videoBuffer = [videoReaderOutput copyNextSampleBuffer];
if (!videoBuffer) {
break;
}
[images addObject:[WKVideoConverter convertSampleBufferRefToUIImage:videoBuffer]];
CFRelease(videoBuffer); }
至此，微信小視頻的難點(我認為的)就解決了，至於其他的實現代碼請看demo就基本實現了，demo可以從這裡下載。
視頻暫停錄制 http://www.gdcl.co.uk/2013/02/20/iPhone-Pause.html
視頻crop綠邊解決 http://stackoverflow.com/questions/22883525/avassetexportsession-giving-me-a-green-border-on-right-and-bottom-of-output-vide
視頻裁剪：http://stackoverflow.com/questions/15737781/video-capture-with-11-aspect-ratio-in-ios/16910263#16910263
CMSampleBufferRef轉image https://developer.apple.com/library/ios/qa/qa1702/_index.html
微信小視頻分析 http://www.jianshu.com/p/3d5ccbde0de1
感謝以上文章的作者
以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持本站。
- 上一頁:iOS實現百度外賣頭像波浪的效果
- 下一頁:iOS直播類APP開發流程解析
- iphone6防盜如何設置
- iPhone6怎麼導入通訊錄?
- 詳解iOS多線程GCD的應用
- UISearchDisplayController UISearchBar
- ios8通訊錄的備份與導入 iphone6通訊錄的備份與導入教程
- ios9越獄插件BytaFont3更新：可以自定義字體[圖]
- iphone怎麼開啟免打擾
- 每日一技：iPhone設置電子郵件定時提醒
- iPhone開發筆記 (6) [UIColor colorWithRed:(CGFloat) green:(CGFloat) blue:(CGFloat) alpha:(CGFloat)]
- 使用iFunBox上傳iPhone壁紙和鈴聲
相關文章
+- 手把手教你完成微信藐視頻iOS代碼完成
- 手把手帶你學Git
- 新手教程：如何在iPad上使用iOS10的Safari分屏功能？
- 新手教程：升級開發者預覽版/公測版後如何改回蘋果iOS10.2正式版？
- 手把手教你怎樣轉換iPhone高清晰電影
- 手把手教你iphone上顯示lrc格式歌詞
- iphone新手教程什麼導入音樂
- 蘋果手機新手教程：怎樣打電話？
- iTunes軟件導入同步助手教程
- iOS7新手教程：Facetime視頻通話
- iOS7新手教程：使用iPhone5字典功能
- iOS7新手教程：拍照時調整焦距
- iOS7插件來電歸屬地kuaidial新手教程
- iOS 8手把手教你降級到iOS 7版本
- 快用蘋果助手教你玩轉iOS8相冊
