[摘要]本文是對IrregularGridCollectionView處理不定寬度的標簽cell的講解，對學習IOS蘋果軟件開發有所幫助,與大家分享。

IrregularGridCollectionView處理不定寬度的標簽cell

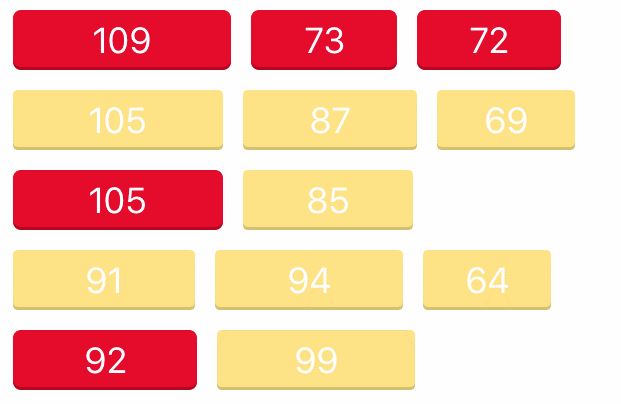

效果

源碼

https://github.com/YouXianMing/UI-Component-Collection 中的IrregularGridCollectionView

//
//  IrregularGridCollectionView.h
//  IrregularGridCollectionView
//
//  Created by YouXianMing on 16/8/30.
//  Copyright © 2016年 YouXianMing. All rights reserved.
//

#import <UIKit/UIKit.h>
#import "IrregularGridCellDataAdapter.h"
#import "MaximumSpacingFlowLayout.h"
#import "CustomIrregularGridViewCell.h"
@class IrregularGridViewCellClassType;
@class IrregularGridCollectionView;

@protocol IrregularGridCollectionViewDelegate <NSObject>

@optional

/**
 *  IrregularGridCollectionView did selected event.
 *
 *  @param collectionGridView CollectionGridView's object.
 *  @param cell               CustomCollectionGridViewCell type's cell.
 *  @param event              CustomCollectionGridViewCell's event.
 */
- (void)irregularGridCollectionView:(IrregularGridCollectionView *)irregularGridCollectionView didSelectedCell:(CustomIrregularGridViewCell *)cell event:(id)event;

@end

@interface IrregularGridCollectionView : UIView

/**
 *  CollectionGridView's delegate.
 */
@property (nonatomic, weak) id <IrregularGridCollectionViewDelegate> delegate;

/**
 *  CollectionView.
 */
@property (nonatomic, strong, readonly) UICollectionView *collectionView;

/**
 *  Content edgeInsets, default is UIEdgeInsetsMake(5, 5, 5, 5).
 */
@property (nonatomic) UIEdgeInsets contentEdgeInsets;

/**
 *  Horizontal item's gap, default is 5.f.
 */
@property (nonatomic) CGFloat horizontalGap;

/**
 *  Vertical item's gap, default is 5.f.
 */
@property (nonatomic) CGFloat verticalGap;

/**
 *  Item's height, default is 20.f.
 */
@property (nonatomic) CGFloat gridHeight;

/**
 *  Register the cells.
 */
@property (nonatomic, strong) NSArray <IrregularGridViewCellClassType *> *registerCells;

/**
 *  The cells data adapter.
 */
@property (nonatomic, strong) NSMutableArray <IrregularGridCellDataAdapter *> *adapters;

/**
 *  To make the config effective.
 */
- (void)makeTheConfigEffective;

/**
 *  Get the CollectionView's content size.
 */
@property (nonatomic, readonly) CGSize contentSize;

/**
 *  Reset the view's size.
 */
- (void)resetSize;

#pragma mark - Constructor.

+ (instancetype)irregularGridCollectionViewWithFrame:(CGRect)frame
                                            delegate:(id <IrregularGridCollectionViewDelegate>)delegate
                                       registerCells:(NSArray <IrregularGridViewCellClassType *> *)registerCells
                                   contentEdgeInsets:(UIEdgeInsets)edgeInsets
                                         verticalGap:(CGFloat)verticalGap
                                       horizontalGap:(CGFloat)horizontalGap
                                          gridHeight:(CGFloat)gridHeight;

@end

#pragma mark - CollectionGridViewCellClassType Class

@interface IrregularGridViewCellClassType : NSObject

@property (nonatomic)         Class      className;
@property (nonatomic, strong) NSString  *reuseIdentifier;

@end

NS_INLINE IrregularGridViewCellClassType *gridViewCellClassType(Class className, NSString  *reuseIdentifier) {

    IrregularGridViewCellClassType *type = [IrregularGridViewCellClassType new];
    type.className                        = className;
    type.reuseIdentifier                  = reuseIdentifier;

    return type;
}

//
//  IrregularGridCollectionView.m
//  IrregularGridCollectionView
//
//  Created by YouXianMing on 16/8/30.
//  Copyright © 2016年 YouXianMing. All rights reserved.
//

#import "IrregularGridCollectionView.h"

#pragma mark - IrregularGridCollectionView Class

@interface IrregularGridCollectionView () <UICollectionViewDelegate, UICollectionViewDataSource, CustomIrregularGridViewCellDelegate>

@property (nonatomic, strong) UICollectionView            *collectionView;
@property (nonatomic, strong) UICollectionViewFlowLayout  *flowLayout;

@end

@implementation IrregularGridCollectionView

#pragma mark - Init

- (void)layoutSubviews {

    [super layoutSubviews];
    _collectionView.frame = CGRectMake(0, 0, self.frame.size.width, self.frame.size.height);
}

- (instancetype)initWithFrame:(CGRect)frame {

    if (self = [super initWithFrame:frame]) {

        self.contentEdgeInsets   = UIEdgeInsetsMake(5, 5, 5, 5);
        self.horizontalGap       = 5.f;
        self.verticalGap         = 5.f;
        self.gridHeight          = 20.f;

        // Init UICollectionViewFlowLayout.
        self.flowLayout = [[MaximumSpacingFlowLayout alloc] init];

        // Init UICollectionView.
        self.collectionView = [[UICollectionView alloc] initWithFrame:self.bounds collectionViewLayout:self.flowLayout];
        self.collectionView.showsHorizontalScrollIndicator = NO;
        self.collectionView.showsVerticalScrollIndicator   = NO;
        self.collectionView.backgroundColor                = [UIColor clearColor];
        self.collectionView.delegate                       = self;
        self.collectionView.dataSource                     = self;
        [self addSubview:self.collectionView];
    }

    return self;
}

- (void)makeTheConfigEffective {

    self.collectionView.contentInset        = self.contentEdgeInsets;
    self.flowLayout.minimumLineSpacing      = self.verticalGap;
    self.flowLayout.minimumInteritemSpacing = self.horizontalGap;
}

#pragma mark - UICollectionView's delegate & data source.

- (NSInteger)collectionView:(UICollectionView *)collectionView numberOfItemsInSection:(NSInteger)section {

    return _adapters.count;
}

- (UICollectionViewCell *)collectionView:(UICollectionView *)collectionView cellForItemAtIndexPath:(NSIndexPath *)indexPath {

    IrregularGridCellDataAdapter *adapter = _adapters[indexPath.row];
    adapter.indexPath                     = indexPath;

    CustomIrregularGridViewCell  *cell    = [collectionView dequeueReusableCellWithReuseIdentifier:adapter.cellReuseIdentifier forIndexPath:indexPath];
    cell.delegate                         = self;
    cell.dataAdapter                      = adapter;
    cell.data                             = adapter.data;
    cell.indexPath                        = indexPath;
    cell.collectionView                   = collectionView;
    cell.collectionGridView = self;
    [cell loadContent];

    return cell;
}

- (CGSize)collectionView:(UICollectionView *)collectionView layout:(UICollectionViewLayout*)collectionViewLayout sizeForItemAtIndexPath:(NSIndexPath *)indexPath {

    IrregularGridCellDataAdapter *adapter = _adapters[indexPath.row];
    return CGSizeMake(adapter.itemWidth, self.gridHeight);
}

+ (instancetype)irregularGridCollectionViewWithFrame:(CGRect)frame
                                            delegate:(id <IrregularGridCollectionViewDelegate>)delegate
                                       registerCells:(NSArray <IrregularGridViewCellClassType *> *)registerCells
                                   contentEdgeInsets:(UIEdgeInsets)edgeInsets
                                         verticalGap:(CGFloat)verticalGap
                                       horizontalGap:(CGFloat)horizontalGap
                                          gridHeight:(CGFloat)gridHeight {

    IrregularGridCollectionView *irregularGridView = [[[self class] alloc] initWithFrame:frame];
    irregularGridView.delegate                     = delegate;
    irregularGridView.contentEdgeInsets            = edgeInsets;
    irregularGridView.verticalGap                  = verticalGap;
    irregularGridView.horizontalGap                = horizontalGap;
    irregularGridView.gridHeight                   = gridHeight;
    irregularGridView.registerCells                = registerCells;
    [irregularGridView makeTheConfigEffective];

    return irregularGridView;
}

#pragma mark - CustomIrregularGridViewCellDelegate

- (void)customIrregularGridViewCell:(CustomIrregularGridViewCell *)cell event:(id)event {

    if (self.delegate && [self.delegate respondsToSelector:@selector(irregularGridCollectionView:didSelectedCell:event:)]) {

        [self.delegate irregularGridCollectionView:self didSelectedCell:cell event:event];
    }
}

#pragma mark - Setter & Getter

- (void)setRegisterCells:(NSArray <IrregularGridViewCellClassType *> *)registerCells {

    _registerCells = registerCells;

    for (IrregularGridViewCellClassType *type in registerCells) {

        [self.collectionView registerClass:type.className forCellWithReuseIdentifier:type.reuseIdentifier];
    }
}

- (CGSize)contentSize {

    CGSize size = [_flowLayout collectionViewContentSize];

    size.width  += self.contentEdgeInsets.left + self.contentEdgeInsets.right;
    size.height += self.contentEdgeInsets.top  + self.contentEdgeInsets.bottom;

    return size;
}

- (void)resetSize {

    CGRect newFrame = self.frame;
    newFrame.size   = [self contentSize];
    self.frame      = newFrame;
}

@end

#pragma mark - IrregularGridViewCellClassType Class

@implementation IrregularGridViewCellClassType

@end

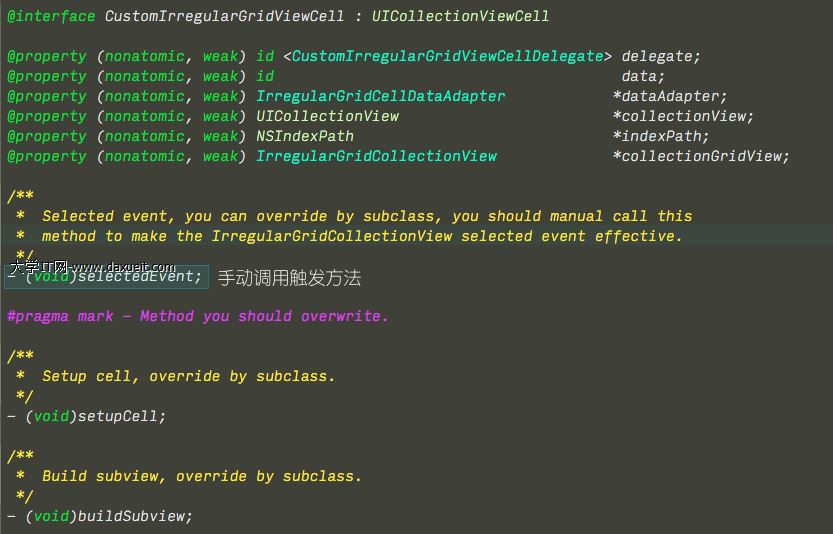

細節
